PART # A-18099 - POLARIS GENERAL 1000 (2016-2017)
PART # 22145 - POLARIS GENERAL 1000 (2018-2024) AND POLARIS GENERAL XP 1000 (2020-2024)

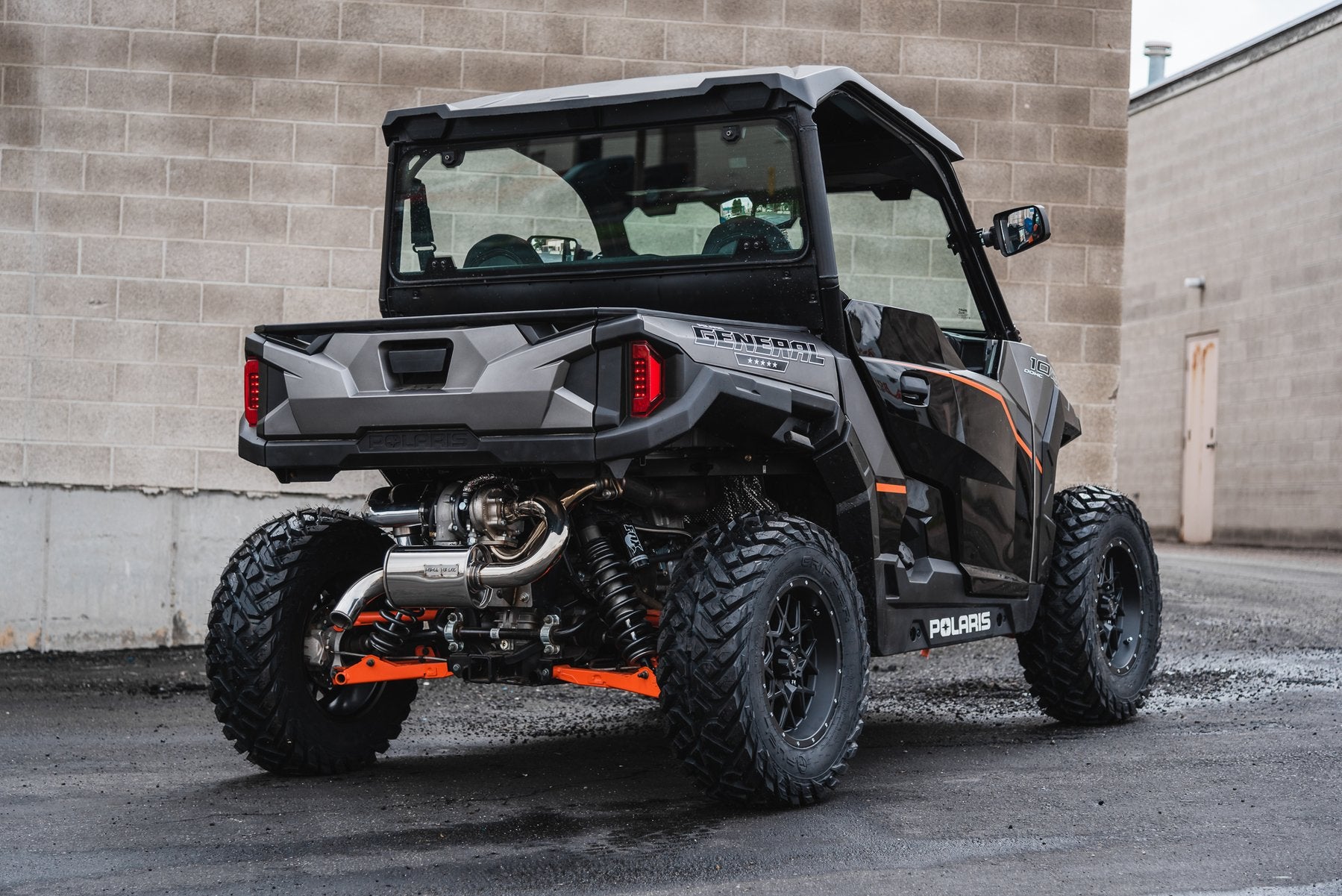

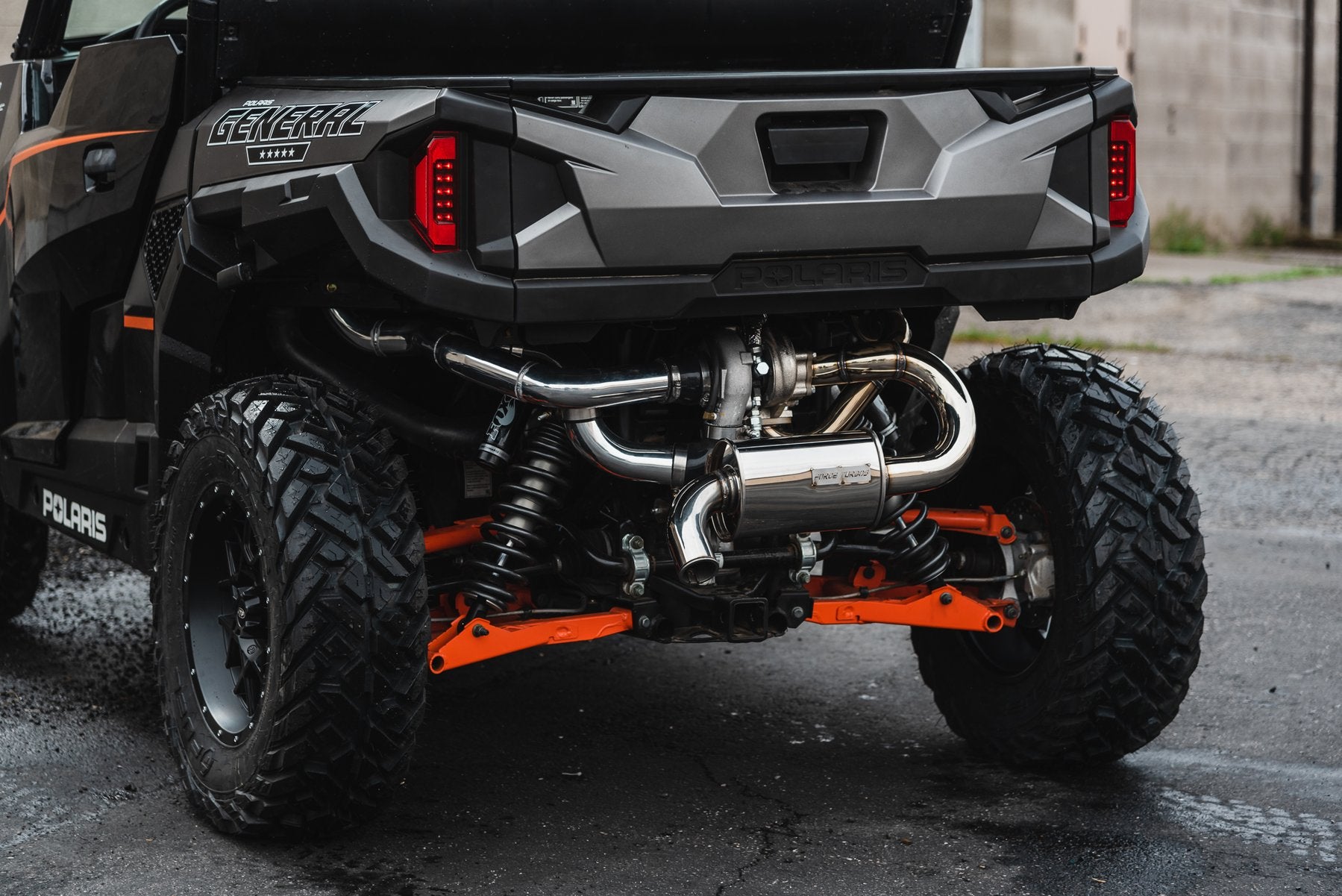

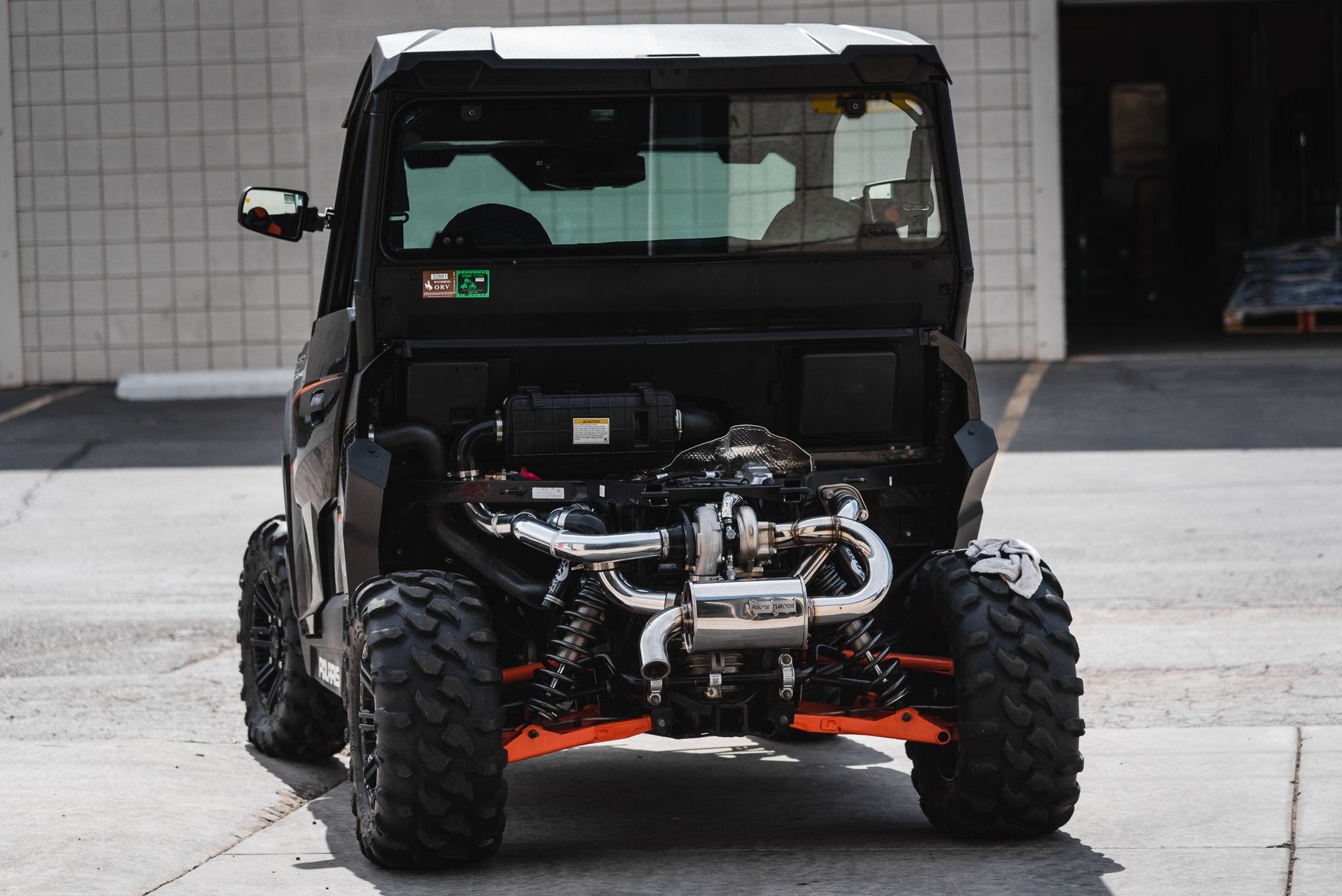

Force Turbos pump fuel turbo system is designed specifically for all Polaris General® 1000 units and Polaris General® 1000 XP units.
With a boost level of 5 psi and high-volume design, you are sure to get the additional horsepower you are looking for with minimal stress on the motor. Your General will see a dramatic horsepower increase to the wheels from 68hp to near and above 105hp.
This system will fit all 2 door and 4 door Polaris General models.

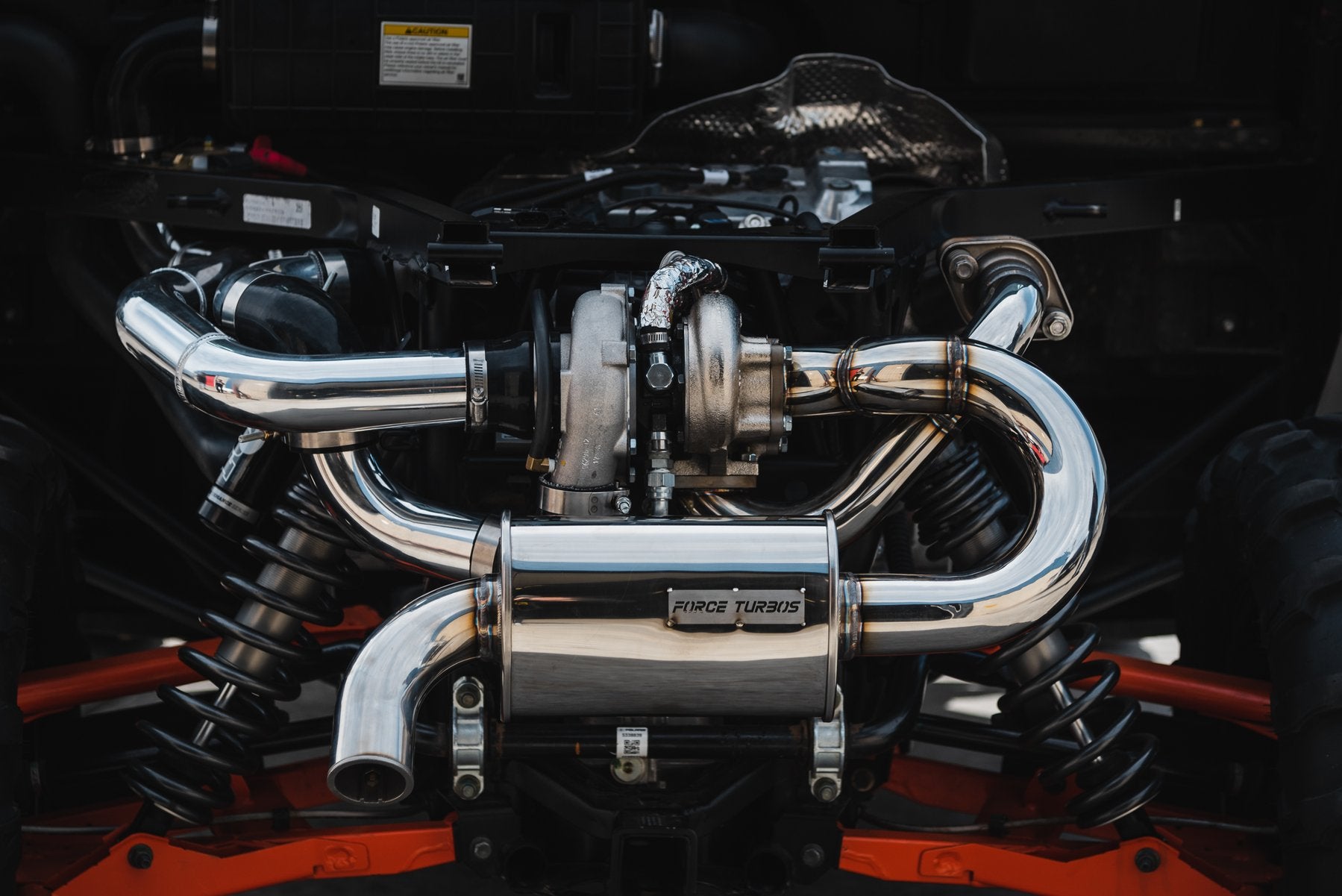

Turbo system includes the following:
- Garrett Turbo
- Dynojet® Powervision 3 with tune
- 2.5” aluminum charge tube & cold air intake
- 4 ply silicone connection fittings
- Stainless steel high flow turbo supply pipe and exhaust components
- All necessary fittings, hoses, clamps, and hardware
- Turbo system does not include clutch kit (options available if needed)
*** If your vehicle is going to be used in deep water, or deep mud please upgrade the oil scavenge pump to the waterproof model. ****
Off-Road Use Only
FITS:
Polaris
- General 1000 (2016-2024)
- General 4 1000 (2017-2022)
- General XP 1000 (2020-2024)
- General XP 4 1000 (2020-2024)
INSTALLATION INSTRUCTIONS:
Tai with Force Turbos shows you how to install the Force Turbos Polaris General Turbo System.
PDF Scavage Pump Installation Instructions
SPECIFICATIONS:
Performance Expectations
- The system takes your General from 68hp at the wheels to near or above 120hp.
Tuning
- Base fuel mapping included. Digital fuel controller tuning required for specific machine setup for optimum functionality.
- For diagnostics and tuning AFR and Boost gauges recommended.
Boost Level
- 6 psi low-pressure high-volume.
Fuel Considerations
- 91 octance non-ethanol fuel is compatible.
System Exhaust
- High flow performance resonator.
Support
- Our experienced staff is available Monday through Friday from 9 am - 5 pm MST to assist with any of your technical questions.
